Prediction performance of STIMP in Pearl River Estuary

[1]:

import h5py
import scipy
import numpy as np
import torch
base_dir = "../log/prediction/PRE/"
label = np.load("../data/PRE/trues.npy")
label_masks = np.load("../data/PRE/true_masks.npy")

[2]:

def load(path):
    path = path + "/with_imputation"
    preds = []
    for i in range(10):
        preds.append(np.load(path+"/prediction_{}.npy".format(i)))
    return np.stack(preds, axis=1)

[3]:

prediction_xg = load(base_dir+"XGBoost")
prediction_xg_wo = np.load(base_dir+"XGBoost/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_our = load(base_dir+"STIMP")
prediction_our_wo = np.load(base_dir+"STIMP/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_mtgnn = load(base_dir+"MTGNN")
prediction_mtgnn_wo = np.load(base_dir+"MTGNN/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_tsmixer = load(base_dir+"TSMixer")
prediction_tsmixer_wo = np.load(base_dir+"TSMixer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_crossformer = load(base_dir+"CrossFormer")
prediction_crossformer_wo = np.load(base_dir+"CrossFormer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_iTransformer = load(base_dir+"iTransformer")
prediction_iTransformer_wo = np.load(base_dir+"iTransformer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_predrnn = load(base_dir+"PredRNN")
prediction_predrnn_wo = np.load(base_dir+"PredRNN/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_pde = np.load("../data/PRE/cmoms.npy")

[4]:

label_masks = label_masks.squeeze()
label = label.squeeze()
label = torch.from_numpy(label)
label_masks = torch.from_numpy(label_masks)

prediction_our = torch.from_numpy(prediction_our).squeeze()
prediction_our_wo = torch.from_numpy(prediction_our_wo).squeeze()
prediction_xg = torch.from_numpy(prediction_xg).squeeze().median(1).values
prediction_xg_wo = torch.from_numpy(prediction_xg_wo).squeeze()
prediction_tsmixer = torch.from_numpy(prediction_tsmixer).squeeze().median(1).values
prediction_tsmixer_wo = torch.from_numpy(prediction_tsmixer_wo).squeeze()
prediction_mtgnn = torch.from_numpy(prediction_mtgnn).squeeze().median(1).values
prediction_mtgnn_wo = torch.from_numpy(prediction_mtgnn_wo).squeeze()
prediction_crossformer = torch.from_numpy(prediction_crossformer).squeeze().median(1).values
prediction_crossformer_wo = torch.from_numpy(prediction_crossformer_wo).squeeze()
prediction_iTransformer = torch.from_numpy(prediction_iTransformer).squeeze().median(1).values
prediction_iTransformer_wo = torch.from_numpy(prediction_iTransformer_wo).squeeze()
prediction_predrnn = torch.from_numpy(prediction_predrnn).squeeze().median(1).values
prediction_predrnn_wo = torch.from_numpy(prediction_predrnn_wo).squeeze()
prediction_pde = torch.from_numpy(prediction_pde)

[5]:

mse_our= (((prediction_our.mean(1)- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_our))
mse_our_wo = (((prediction_our_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_our_wo))

mse_xg = (((prediction_xg - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_xg))
mse_xg_wo = (((prediction_xg_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_xg_wo))

mse_tsmixer = (((prediction_tsmixer- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_tsmixer))
mse_tsmixer_wo = (((prediction_tsmixer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_tsmixer_wo))

mse_crossformer = (((prediction_crossformer- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_crossformer))
mse_crossformer_wo = (((prediction_crossformer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)

mse_mtgnn = (((prediction_mtgnn - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_mtgnn))
mse_mtgnn_wo = (((prediction_mtgnn_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_mtgnn_wo))

mse_iTransformer = (((prediction_iTransformer - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_iTransformer))
mse_iTransformer_wo = (((prediction_iTransformer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_iTransformer_wo))

mse_predrnn = (((prediction_predrnn - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_predrnn))
mse_predrnn_wo = (((prediction_predrnn_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_predrnn_wo))

mse_pde = (((prediction_pde- label[:322,0])*label_masks[:322,0])**2).sum(0)/(label_masks[:322,0].sum(0)+1e-5)
print(np.nanmean(mse_pde))

0.06992425
0.09210903
0.16486254
0.18463
0.08029781
0.13500492
0.091983125
0.09408409
0.17269786
0.076714985
0.17230226
0.09105629
0.08998027
0.36186748716981854

[6]:

mse_our[mse_our==0]=np.nan
mse_our_wo[mse_our_wo==0]=np.nan
mse_xg_wo[mse_xg_wo==0]=np.nan
mse_xg[mse_xg==0]=np.nan
mse_crossformer_wo[mse_crossformer_wo==0]=np.nan
mse_crossformer[mse_crossformer==0]=np.nan
mse_mtgnn_wo[mse_mtgnn_wo==0]=np.nan
mse_mtgnn[mse_mtgnn==0]=np.nan
mse_tsmixer_wo[mse_tsmixer_wo==0]=np.nan
mse_tsmixer[mse_tsmixer==0]=np.nan
mse_iTransformer_wo[mse_iTransformer_wo==0]=np.nan
mse_iTransformer[mse_iTransformer==0]=np.nan
mse_predrnn_wo[mse_predrnn_wo==0]=np.nan
mse_predrnn[mse_predrnn==0]=np.nan

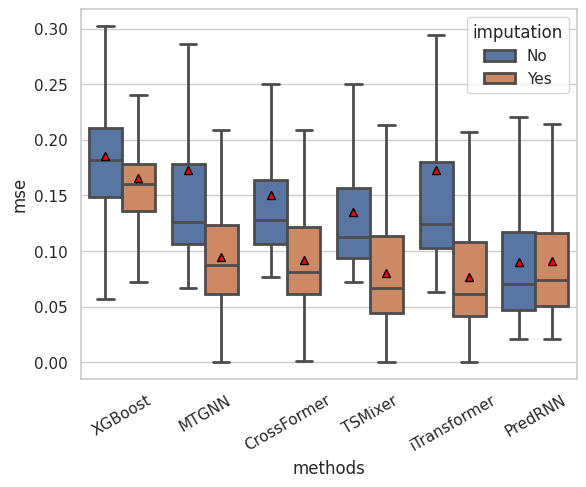

Supplementary Fig 4a: imputation reduces the mean square error of prediction

[7]:

import pandas as pd
import numpy as np
import seaborn as sns
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
num_nodes = prediction_our.shape[-1]
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
imputation = []
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])

data = {'mse': np.concatenate([mse_xg_wo.numpy(), mse_xg.numpy(), mse_mtgnn_wo.numpy(), mse_mtgnn.numpy(), mse_crossformer_wo.numpy(), mse_crossformer.numpy(), mse_tsmixer_wo.numpy(), mse_tsmixer.numpy(), mse_iTransformer_wo.numpy(), mse_iTransformer.numpy(), mse_predrnn_wo.numpy(), mse_predrnn.numpy()],0),
        'methods':category,
        'imputation':imputation}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
g = sns.boxplot(x='methods', y='mse', hue='imputation', linewidth=2,showfliers=False,showmeans=True,data=data,meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_8_0.png

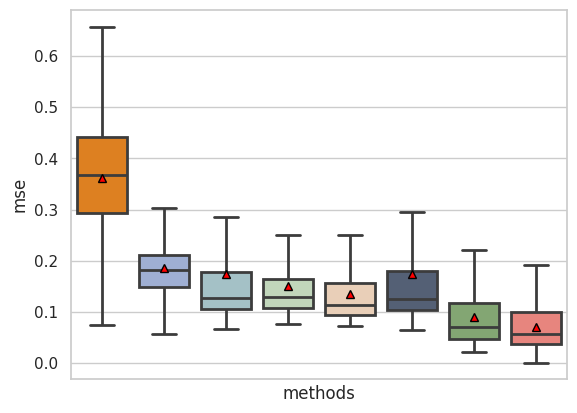

Supplementary Fig 2a: overall prediction performance in terms of mean square error

[8]:

import pandas as pd
import numpy as np
category = []
category.extend(['cmoms' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['Our' for i in range(num_nodes)])
data = {'mse': np.concatenate([mse_pde.numpy(), mse_xg_wo.numpy(), mse_mtgnn_wo.numpy(), mse_crossformer_wo.numpy(), mse_tsmixer_wo.numpy(), mse_iTransformer_wo.numpy(), mse_predrnn_wo.numpy(),  mse_our.numpy()],0),
        'methods':category}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
color = ["#F8766D", "#80AE6B", "#4E5E7B",  "#F1CFB0", "#BFDAB6", "#9EC5CC", "#96ABDC", "#FC8002"][::-1]
print(color)
g = sns.boxplot(x='methods', y='mse', linewidth=2,showfliers=False,showmeans=True,data=data,palette=color, meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
plt.xticks([])

['#FC8002', '#96ABDC', '#9EC5CC', '#BFDAB6', '#F1CFB0', '#4E5E7B', '#80AE6B', '#F8766D']

/tmp/ipykernel_106384/3474747820.py:19: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

  g = sns.boxplot(x='methods', y='mse', linewidth=2,showfliers=False,showmeans=True,data=data,palette=color, meanprops={

[8]:

([], [])
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_10_3.png
[9]:

mae_our= ((np.abs(prediction_our.mean(1)- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_our))
mae_our_wo = ((np.abs(prediction_our_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_our_wo))

mae_xg = ((np.abs(prediction_xg - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_xg))
mae_xg_wo = ((np.abs(prediction_xg_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_xg_wo))

mae_tsmixer = ((np.abs(prediction_tsmixer- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_tsmixer))
mae_tsmixer_wo = ((np.abs(prediction_tsmixer_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_tsmixer_wo))

mae_crossformer = ((np.abs(prediction_crossformer- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_crossformer))
mae_crossformer_wo = ((np.abs(prediction_crossformer_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_crossformer_wo))

mae_mtgnn = ((np.abs(prediction_mtgnn - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_mtgnn))
mae_mtgnn_wo = ((np.abs(prediction_mtgnn_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_mtgnn_wo))

mae_iTransformer = ((np.abs(prediction_iTransformer - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_iTransformer))
mae_iTransformer_wo = ((np.abs(prediction_iTransformer_wo- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_iTransformer_wo))

mae_predrnn = ((np.abs(prediction_predrnn - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_predrnn))
mae_predrnn_wo = ((np.abs(prediction_predrnn_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_predrnn_wo))

mae_pde = ((np.abs(prediction_pde - label[:322,0])*label_masks[:322,0])).sum(0)/(label_masks[:322,0].sum(0)+1e-5)

0.1927668
0.22710621
0.33940437
0.35655594
0.2180024
0.29954606
0.2402925
0.31450367
0.24517104
0.34601954
0.20689625
0.34509417
0.22762473
0.22148255

[10]:

mae_our[mae_our==0]=np.nan
mae_our_wo[mae_our_wo==0]=np.nan
mae_xg_wo[mae_xg_wo==0]=np.nan
mae_xg[mae_xg==0]=np.nan
mae_crossformer_wo[mae_crossformer_wo==0]=np.nan
mae_crossformer[mae_crossformer==0]=np.nan
mae_mtgnn_wo[mae_mtgnn_wo==0]=np.nan
mae_mtgnn[mae_mtgnn==0]=np.nan
mae_tsmixer_wo[mae_tsmixer_wo==0]=np.nan
mae_tsmixer[mae_tsmixer==0]=np.nan
mae_iTransformer_wo[mae_iTransformer_wo==0]=np.nan
mae_iTransformer[mae_iTransformer==0]=np.nan
mae_predrnn_wo[mae_predrnn_wo==0]=np.nan
mae_predrnn[mae_predrnn==0]=np.nan

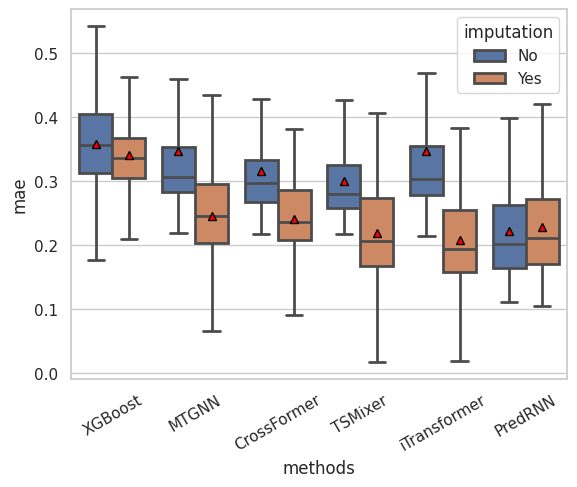

Supplementary Fig 4a: imputation reduces the mean absolute error of prediction

[23]:

import seaborn as sns
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])

imputation = []
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])

data = {'mae': np.concatenate([mae_xg_wo.numpy(), mae_xg.numpy(), mae_mtgnn_wo.numpy(), mae_mtgnn.numpy(), mae_crossformer_wo.numpy(), mae_crossformer.numpy(), mae_tsmixer_wo.numpy(), mae_tsmixer.numpy(), mae_iTransformer_wo.numpy(), mae_iTransformer.numpy(), mae_predrnn_wo.numpy(), mae_predrnn.numpy()],0),
        'methods':category,
        'imputation':imputation}
data = pd.DataFrame.from_dict(data)



plt.xticks(rotation=30)
g = sns.boxplot(x='methods', y='mae', hue='imputation', linewidth=2,showfliers=False,showmeans=True,data=data,meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_14_0.png

Fig 2b: overall performance in term of mean absolute error

[24]:

import pandas as pd
import numpy as np
category = []
category.extend(['CMOMS' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['Our' for i in range(num_nodes)])
data = {'mae': np.concatenate([ mae_pde.numpy(), mae_xg_wo.numpy(), mae_mtgnn_wo.numpy(), mae_crossformer_wo.numpy(), mae_tsmixer_wo.numpy(), mae_iTransformer_wo.numpy(), mae_predrnn_wo.numpy(),  mae_our.numpy()],0),
        'methods':category}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
# color= sns.color_palette()[:7][::-1]
color = ["#F8766D", "#80AE6B", "#4E5E7B",  "#F1CFB0", "#BFDAB6", "#9EC5CC", "#96ABDC", "#FC8002"][::-1]

g = sns.boxplot(data=data, x='methods', y='mae', hue="methods", linewidth=2, showfliers=False,showmeans=True,palette=color, meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
# g.legend(loc="upper right", bbox_to_anchor=(1.05,1.05))
plt.xticks([])

[24]:

([], [])
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_16_1.png

Fig 3d: mean absolute error of PredRNN

[11]:

from mpl_toolkits import basemap
from sklearn.cluster import KMeans, DBSCAN, SpectralClustering
import cartopy.crs as ccrs
from copy import deepcopy
import h5py
from numpy import meshgrid
import numpy as np
from cmap import Colormap

cm = Colormap('vispy:fire').to_mpl()  # case insensitive
is_sea = np.load("../data/PRE/is_sea.npy")
mae_xg_sp = deepcopy(mae_predrnn_wo.numpy())
tmp = np.zeros((60,96))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= mae_xg_sp

lon = np.load("../data/PRE/lon.npy")
lati = np.load("../data/PRE/lati.npy")


lon1, lon2, lati1, lati2 = lon.min(), lon.max(), lati.min(), lati.max()
map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.6, 40),cmap=cm,extend='both')

map.colorbar(boundaries=np.linspace(0, 0.6, 100), ticks=np.linspace(0, 0.6, 3),location='bottom')

[11]:

<matplotlib.colorbar.Colorbar at 0x720592e14220>
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_18_1.png

Fig 3d: mean absolute error of STIMP w/o Imputation

[12]:

mae_our_sp = deepcopy(mae_our_wo.numpy())
tmp = np.zeros((60,96))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= mae_our_sp

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.6, 40),cmap=cm,extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(0, 0.6, 100), ticks=np.linspace(0, 0.6, 3),location='bottom')

[12]:

<matplotlib.colorbar.Colorbar at 0x7205933e4c40>
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_20_1.png

Fig 3d: mean absolute error of STIMP

[13]:

mae_our_sp = deepcopy(mae_our.numpy())
tmp = np.zeros((60,96))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= mae_our_sp

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.6, 40),cmap=cm,extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(0, 0.6, 100), ticks=np.linspace(0, 0.6, 3),location='bottom')

[13]:

<matplotlib.colorbar.Colorbar at 0x720592d94a90>

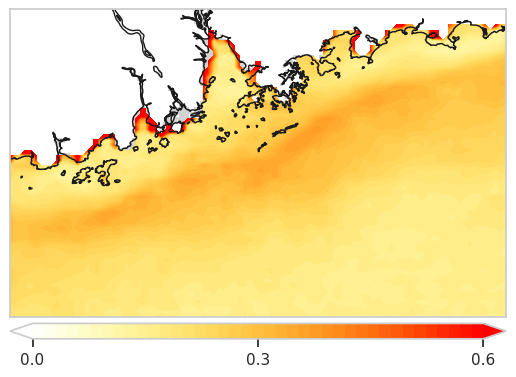

../../_images/analysis_PRE_03-prediction-pearl-river-estuary_22_1.png

Fig 3d: improvement of STIMP’s prediction function compared to PredRNN

[14]:

cm = Colormap('chrisluts:I_Red').to_mpl()
improvement =  (mae_predrnn_wo.numpy() - mae_our_wo.numpy())/mae_predrnn_wo.numpy()
tmp = np.zeros((60,96))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= improvement

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.2, 40),cmap=cm,extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(0, 0.2, 100), ticks=np.linspace(0, 0.2, 6),location="bottom")

[14]:

<matplotlib.colorbar.Colorbar at 0x720592e06c40>

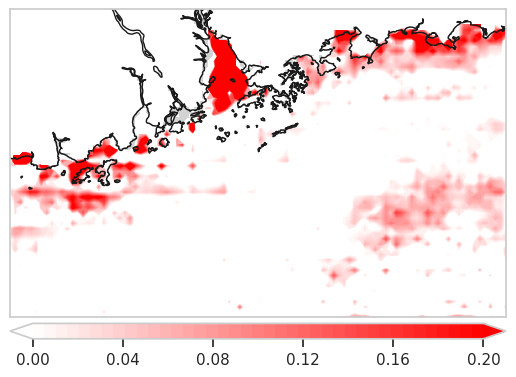

../../_images/analysis_PRE_03-prediction-pearl-river-estuary_24_1.png

Fig 3e: improvement of STIMP compared to PredRNN

[15]:

improvement =  (mae_our_wo.numpy() - mae_our.numpy())/mae_our_wo.numpy()
tmp = np.zeros((60,96))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= improvement

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.2, 40),cmap=cm,extend='both')

map.colorbar(boundaries=np.linspace(0, 0.2, 100), ticks=np.linspace(0, 0.2, 6),location="bottom")

[15]:

<matplotlib.colorbar.Colorbar at 0x720593316850>

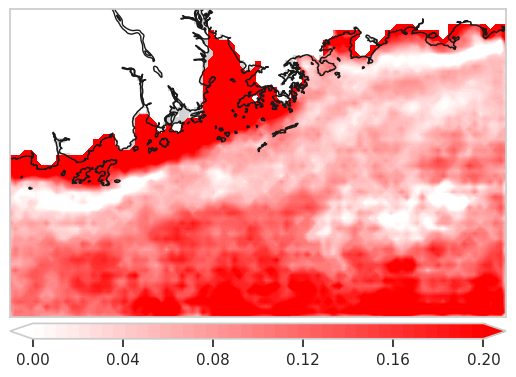

../../_images/analysis_PRE_03-prediction-pearl-river-estuary_26_1.png

Fig 3f: STIMP achieved higher improvement in locations with higher rates of missing data

[17]:

import pandas as pd
import numpy as np
import seaborn as sns
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

is_sea = np.load("../data/PRE/is_sea.npy")
chla = np.load("../data/PRE/chla.npy")
chla = chla[648:]
missing_rate = np.sum(np.isnan(chla), 0)/chla.shape[0]
missing_rate = missing_rate[is_sea.astype(bool)]

improvement =  (mae_our_wo.numpy() - mae_our.numpy())/mae_our_wo.numpy()
mse = [improvement[np.bitwise_and(missing_rate>i*0.1, missing_rate<=(i+1)*0.1)] for i in range(9)]

category = []
category.extend(['(0-10%]' for i in range(len(mse[0]))])
category.extend(['(10-20%]' for i in range(len(mse[1]))])
category.extend(['(20-30%]' for i in range(len(mse[2]))])
category.extend(['(30-40%]' for i in range(len(mse[3]))])
category.extend(['(40-50%]' for i in range(len(mse[4]))])
category.extend(['(50-60%]' for i in range(len(mse[5]))])
category.extend(['(60-70%]' for i in range(len(mse[6]))])
category.extend(['(70-80%]' for i in range(len(mse[7]))])
category.extend(['(80-90%]' for i in range(len(mse[8]))])

data = {'improvement': np.concatenate(mse,0),
        'missing rate':category}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
g = sns.boxplot(x='missing rate', y='improvement',  linewidth=2,showfliers=False,showmeans=True,data=data,meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_28_0.png

Fig 3h: Horizontal distribution of observed temporally averaged Chl a

[19]:

cm = Colormap('chrisluts:i_green').to_mpl()
is_sea = np.load("../data/PRE/is_sea.npy")

mean = np.nanmean(np.load("../data/PRE/chla.npy").squeeze(),0)
mean = np.log10(mean)
mean[~is_sea.astype(bool)]=np.nan

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, mean, levels=np.linspace(-1.5, 1.5, 40),cmap="rainbow",extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(-1.5, 1.5, 100), ticks=np.linspace(-1.5, 1.5, 6),location="bottom")

/tmp/ipykernel_106384/3991319613.py:4: RuntimeWarning: Mean of empty slice
  mean = np.nanmean(np.load("../data/PRE/chla.npy").squeeze(),0)

[19]:

<matplotlib.colorbar.Colorbar at 0x720592d96340>

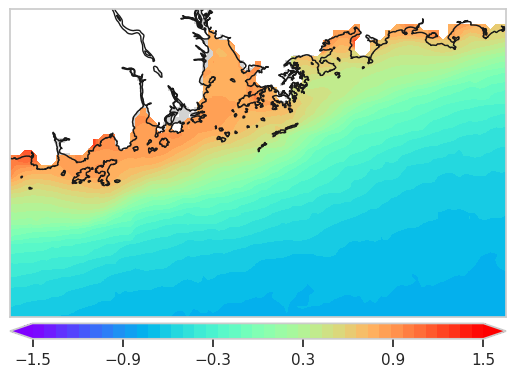

../../_images/analysis_PRE_03-prediction-pearl-river-estuary_30_2.png

Fig 3h: Horizontal distribution of predicted temporally averaged Chl_a

[20]:

index = [46*i for i in range(306//46)]
predict = deepcopy(prediction_our[index].transpose(1,2).reshape(276,10,num_nodes))
predict = 10**predict
predict = predict.mean(1)
mean = predict.mean(0)
mean = np.log10(mean)
tmp = np.zeros((60, 96))
tmp[is_sea.astype(bool)]=mean
tmp[~is_sea.astype(bool)]=np.nan

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(-1.5, 1.5, 40),cmap="rainbow",extend='both')
# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(-1.5, 1.5, 100), ticks=np.linspace(-1.5, 1.5, 6),location="bottom")

[20]:

<matplotlib.colorbar.Colorbar at 0x720593462760>

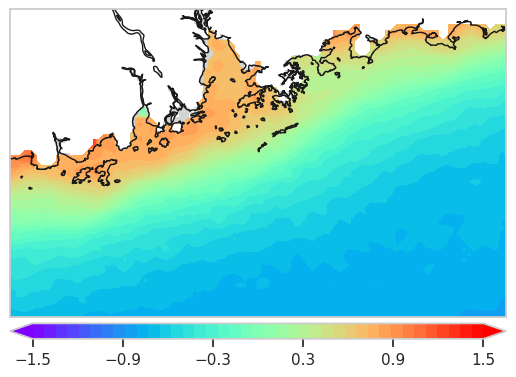

../../_images/analysis_PRE_03-prediction-pearl-river-estuary_32_1.png

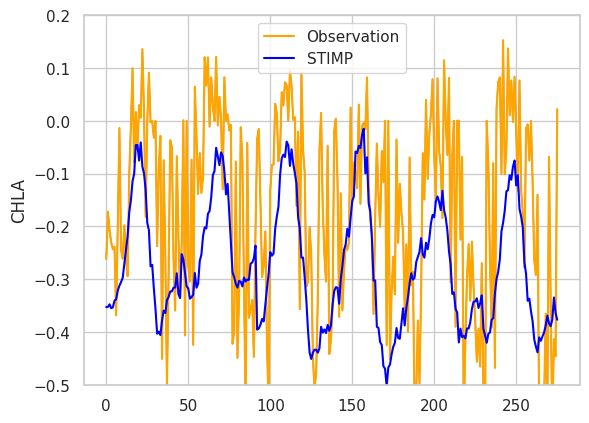

Fig 3g: Time series of domain mean Chl a from January 2017 to December 2022

[ ]:

from copy import deepcopy
import seaborn as sns
import matplotlib.pyplot as plt
import scipy.stats as stat
import scipy.io as scio

def runningMeanFast(x, N):
    return np.convolve(x, np.ones((N,))/N)[(N-1):]



index = [46*i for i in range(306//46)]
tmp  = deepcopy(label[index].reshape(276,-1))
tmp = tmp.mean(1).numpy()
plt.plot(np.arange(276), np.array(tmp),linewidth=1, color="Gray")
# tmp = runningMeanFast(tmp, 10)

plt.plot(np.arange(276), np.array(tmp), label="Observation",color="Orange")

print(prediction_our.shape)
predict = deepcopy(prediction_our[index].transpose(1,2).reshape(276,10,num_nodes))
predict = predict[:,:].mean(1)
predict = predict.mean(-1)
predict_predrnn_ = deepcopy(prediction_predrnn_wo[index].reshape(276,4443))
predict_predrnn_ = predict_predrnn_.mean(-1)

plt.plot(np.arange(276), predict, label="STIMP", color="Blue")


plt.legend()
plt.ylabel("CHLA")
plt.ylim(-0.5,0.2)
plt.show()
print(stat.pearsonr(tmp[:], predict))
print(stat.pearsonr(tmp[:], predict_predrnn_))
print(np.mean(np.abs(tmp[:]-predict.numpy())))
print(np.mean(np.abs(tmp[:]-predict_predrnn_.numpy())))
print(np.mean((tmp[:]-predict.numpy())**2))
print(np.mean((tmp[:]-predict_predrnn_.numpy())**2))

torch.Size([329, 10, 46, 4443])
../../_images/analysis_PRE_03-prediction-pearl-river-estuary_34_1.png
PearsonRResult(statistic=0.5299204943818787, pvalue=2.1959441383800024e-21)
PearsonRResult(statistic=0.5587501300209999, pvalue=4.615514616773349e-24)
0.15792616
0.15338221
0.03699594
0.03496181
