Prediction performance of STIMP in the Northern Gulf of Mexico

import h5py
import scipy
import numpy as np
import torch
base_dir = "../log/prediction/MEXICO/"
label = np.load("../data/MEXICO/trues.npy")
label_masks = np.load("../data/MEXICO/true_masks.npy")

def load(path):
    path = path + "/with_imputation"
    preds = []
    for i in range(10):
        preds.append(np.load(path+"/prediction_{}.npy".format(i)))
    return np.stack(preds, axis=1)

prediction_xg = load(base_dir+"XGBoost")
prediction_xg_wo = np.load(base_dir+"XGBoost/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_our = load(base_dir+"STIMP")
prediction_our_wo = np.load(base_dir+"STIMP/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_mtgnn = load(base_dir+"MTGNN")
prediction_mtgnn_wo = np.load(base_dir+"MTGNN/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_tsmixer = load(base_dir+"TSMixer")
prediction_tsmixer_wo = np.load(base_dir+"TSMixer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_crossformer = load(base_dir+"CrossFormer")
prediction_crossformer_wo = np.load(base_dir+"CrossFormer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_iTransformer = load(base_dir+"iTransformer")
prediction_iTransformer_wo = np.load(base_dir+"iTransformer/without_imputation/prediction_0.npy", allow_pickle=True)
prediction_predrnn = load(base_dir+"PredRNN")
prediction_predrnn_wo = np.load(base_dir+"PredRNN/without_imputation/prediction_0.npy", allow_pickle=True)

label_masks = label_masks.squeeze()
label = label.squeeze()
label = torch.from_numpy(label)
label_masks = torch.from_numpy(label_masks)

prediction_our = torch.from_numpy(prediction_our).squeeze()
prediction_our_wo = torch.from_numpy(prediction_our_wo).squeeze()
prediction_xg = torch.from_numpy(prediction_xg).squeeze().median(1).values
prediction_xg_wo = torch.from_numpy(prediction_xg_wo).squeeze()
prediction_tsmixer = torch.from_numpy(prediction_tsmixer).squeeze().median(1).values
prediction_tsmixer_wo = torch.from_numpy(prediction_tsmixer_wo).squeeze()
prediction_mtgnn = torch.from_numpy(prediction_mtgnn).squeeze().median(1).values
prediction_mtgnn_wo = torch.from_numpy(prediction_mtgnn_wo).squeeze()
prediction_crossformer = torch.from_numpy(prediction_crossformer).squeeze().median(1).values
prediction_crossformer_wo = torch.from_numpy(prediction_crossformer_wo).squeeze()
prediction_iTransformer = torch.from_numpy(prediction_iTransformer).squeeze().median(1).values
prediction_iTransformer_wo = torch.from_numpy(prediction_iTransformer_wo).squeeze()
prediction_predrnn = torch.from_numpy(prediction_predrnn).squeeze().median(1).values
prediction_predrnn_wo = torch.from_numpy(prediction_predrnn_wo).squeeze()

mse_our= (((prediction_our.mean(1)- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_our))
mse_our_wo = (((prediction_our_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_our_wo))

mse_xg = (((prediction_xg - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_xg))
mse_xg_wo = (((prediction_xg_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_xg_wo))

mse_tsmixer = (((prediction_tsmixer- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_tsmixer))
mse_tsmixer_wo = (((prediction_tsmixer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_tsmixer_wo))

mse_crossformer = (((prediction_crossformer- label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_crossformer))
mse_crossformer_wo = (((prediction_crossformer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)

mse_mtgnn = (((prediction_mtgnn - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_mtgnn))
mse_mtgnn_wo = (((prediction_mtgnn_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_mtgnn_wo))

mse_iTransformer = (((prediction_iTransformer - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_iTransformer))
mse_iTransformer_wo = (((prediction_iTransformer_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_iTransformer_wo))

mse_predrnn = (((prediction_predrnn - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_predrnn))
mse_predrnn_wo = (((prediction_predrnn_wo - label)*label_masks)**2).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mse_predrnn_wo))

0.06848513
0.08328266
0.11882654413873663
0.13446369859336033
0.070920564
0.1124657
0.07620916
0.0738096
0.12084135
0.07106932
0.124221794
0.080911346
0.08742354

mse_our[mse_our==0]=np.nan
mse_our_wo[mse_our_wo==0]=np.nan
mse_xg_wo[mse_xg_wo==0]=np.nan
mse_xg[mse_xg==0]=np.nan
mse_crossformer_wo[mse_crossformer_wo==0]=np.nan
mse_crossformer[mse_crossformer==0]=np.nan
mse_mtgnn_wo[mse_mtgnn_wo==0]=np.nan
mse_mtgnn[mse_mtgnn==0]=np.nan
mse_tsmixer_wo[mse_tsmixer_wo==0]=np.nan
mse_tsmixer[mse_tsmixer==0]=np.nan
mse_iTransformer_wo[mse_iTransformer_wo==0]=np.nan
mse_iTransformer[mse_iTransformer==0]=np.nan
mse_predrnn_wo[mse_predrnn_wo==0]=np.nan
mse_predrnn[mse_predrnn==0]=np.nan

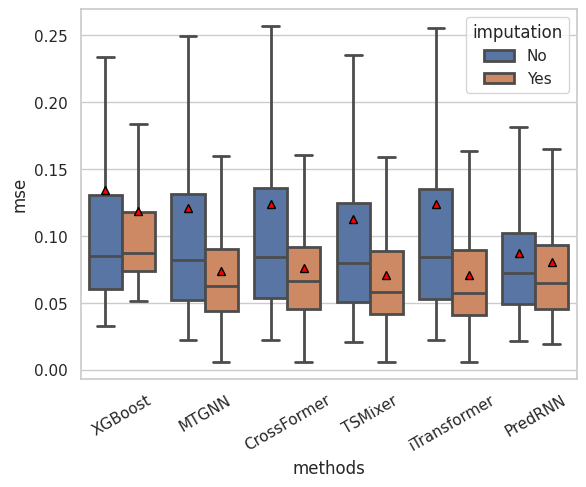

Supplementary Fig 4b: imputation reduces the mean square error of prediction

import pandas as pd
import numpy as np
import seaborn as sns
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
num_nodes = prediction_our.shape[-1]
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
imputation = []
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])

data = {'mse': np.concatenate([mse_xg_wo.numpy(), mse_xg.numpy(), mse_mtgnn_wo.numpy(), mse_mtgnn.numpy(), mse_crossformer_wo.numpy(), mse_crossformer.numpy(), mse_tsmixer_wo.numpy(), mse_tsmixer.numpy(), mse_iTransformer_wo.numpy(), mse_iTransformer.numpy(), mse_predrnn_wo.numpy(), mse_predrnn.numpy()],0),
        'methods':category,
        'imputation':imputation}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
g = sns.boxplot(x='methods', y='mse', hue='imputation', linewidth=2,showfliers=False,showmeans=True,data=data,meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})

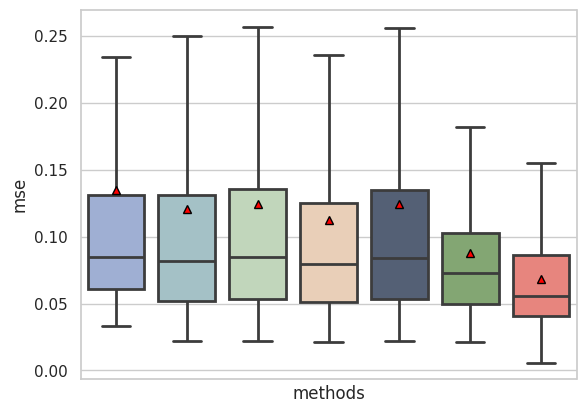

Supplementary Fig 2b: overall prediction performance in terms of mean square error

import pandas as pd
import numpy as np
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['Our' for i in range(num_nodes)])
data = {'mse': np.concatenate([mse_xg_wo.numpy(), mse_mtgnn_wo.numpy(), mse_crossformer_wo.numpy(), mse_tsmixer_wo.numpy(), mse_iTransformer_wo.numpy(), mse_predrnn_wo.numpy(),  mse_our.numpy()],0),
        'methods':category}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
color = ["#F8766D", "#80AE6B", "#4E5E7B",  "#F1CFB0", "#BFDAB6", "#9EC5CC", "#96ABDC"][::-1]
print(color)
g = sns.boxplot(x='methods', y='mse', linewidth=2,showfliers=False,showmeans=True,data=data,palette=color, meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
plt.xticks([])

['#96ABDC', '#9EC5CC', '#BFDAB6', '#F1CFB0', '#4E5E7B', '#80AE6B', '#F8766D']

/tmp/ipykernel_1702374/3314274250.py:18: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

  g = sns.boxplot(x='methods', y='mse', linewidth=2,showfliers=False,showmeans=True,data=data,palette=color, meanprops={

([], [])

mae_our= ((np.abs(prediction_our.mean(1)- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_our))
mae_our_wo = ((np.abs(prediction_our_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_our_wo))

mae_xg = ((np.abs(prediction_xg - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_xg))
mae_xg_wo = ((np.abs(prediction_xg_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_xg_wo))

mae_tsmixer = ((np.abs(prediction_tsmixer- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_tsmixer))
mae_tsmixer_wo = ((np.abs(prediction_tsmixer_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_tsmixer_wo))

mae_crossformer = ((np.abs(prediction_crossformer- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_crossformer))
mae_crossformer_wo = ((np.abs(prediction_crossformer_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_crossformer_wo))

mae_mtgnn = ((np.abs(prediction_mtgnn - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_mtgnn))
mae_mtgnn_wo = ((np.abs(prediction_mtgnn_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_mtgnn_wo))

mae_iTransformer = ((np.abs(prediction_iTransformer - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_iTransformer))
mae_iTransformer_wo = ((np.abs(prediction_iTransformer_wo- label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_iTransformer_wo))

mae_predrnn = ((np.abs(prediction_predrnn - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_predrnn))
mae_predrnn_wo = ((np.abs(prediction_predrnn_wo - label)*label_masks)).sum([0,1])/(label_masks.sum([0,1])+1e-5)
print(np.nanmean(mae_predrnn_wo))

0.19505517
0.21383943
0.26526899702739004
0.26998080155635307
0.19999835
0.24925956
0.21000431
0.2639664
0.20508678
0.25965065
0.19903877
0.26388556
0.21201012
0.22357854

mae_our[mae_our==0]=np.nan
mae_our_wo[mae_our_wo==0]=np.nan
mae_xg_wo[mae_xg_wo==0]=np.nan
mae_xg[mae_xg==0]=np.nan
mae_crossformer_wo[mae_crossformer_wo==0]=np.nan
mae_crossformer[mae_crossformer==0]=np.nan
mae_mtgnn_wo[mae_mtgnn_wo==0]=np.nan
mae_mtgnn[mae_mtgnn==0]=np.nan
mae_tsmixer_wo[mae_tsmixer_wo==0]=np.nan
mae_tsmixer[mae_tsmixer==0]=np.nan
mae_iTransformer_wo[mae_iTransformer_wo==0]=np.nan
mae_iTransformer[mae_iTransformer==0]=np.nan
mae_predrnn_wo[mae_predrnn_wo==0]=np.nan
mae_predrnn[mae_predrnn==0]=np.nan

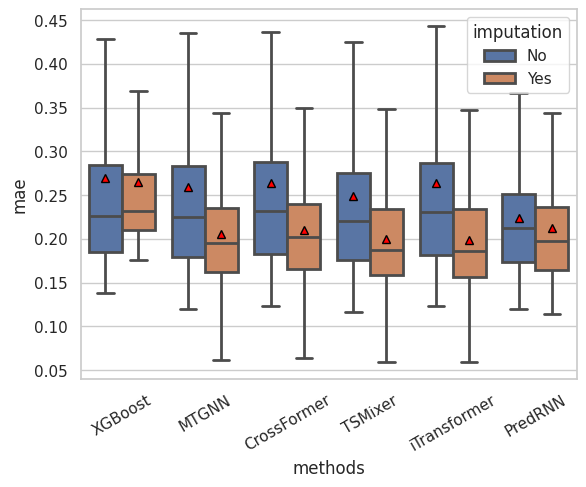

Supplementary Fig 4b: imputation reduces the mean absolute error of prediction

import seaborn as sns
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])

imputation = []
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])
imputation.extend(['No' for i in range(num_nodes)])
imputation.extend(['Yes' for i in range(num_nodes)])

data = {'mae': np.concatenate([mae_xg_wo.numpy(), mae_xg.numpy(), mae_mtgnn_wo.numpy(), mae_mtgnn.numpy(), mae_crossformer_wo.numpy(), mae_crossformer.numpy(), mae_tsmixer_wo.numpy(), mae_tsmixer.numpy(), mae_iTransformer_wo.numpy(), mae_iTransformer.numpy(), mae_predrnn_wo.numpy(), mae_predrnn.numpy()],0),
        'methods':category,
        'imputation':imputation}
data = pd.DataFrame.from_dict(data)



plt.xticks(rotation=30)
g = sns.boxplot(x='methods', y='mae', hue='imputation', linewidth=2,showfliers=False,showmeans=True,data=data,meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})

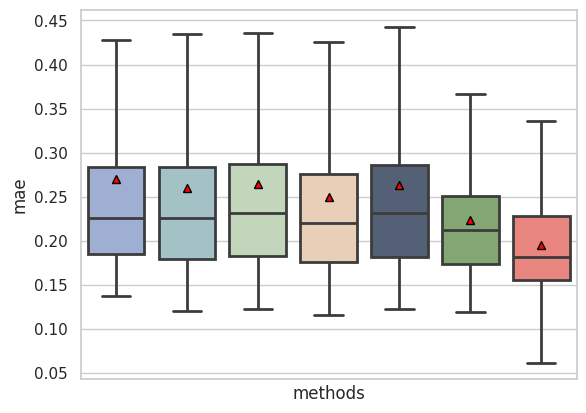

Fig 2b: overall performance in term of mean absolute error

import pandas as pd
import numpy as np
category = []
category.extend(['XGBoost' for i in range(num_nodes)])
category.extend(['MTGNN' for i in range(num_nodes)])
category.extend(['CrossFormer' for i in range(num_nodes)])
category.extend(['TSMixer' for i in range(num_nodes)])
category.extend(['iTransformer' for i in range(num_nodes)])
category.extend(['PredRNN' for i in range(num_nodes)])
category.extend(['Our' for i in range(num_nodes)])
data = {'mae': np.concatenate([mae_xg_wo.numpy(), mae_mtgnn_wo.numpy(), mae_crossformer_wo.numpy(), mae_tsmixer_wo.numpy(), mae_iTransformer_wo.numpy(), mae_predrnn_wo.numpy(),  mae_our.numpy()],0),
        'methods':category}
data = pd.DataFrame.from_dict(data)
sns.set(style="whitegrid")
plt.xticks(rotation=30)
# color= sns.color_palette()[:7][::-1]
color = ["#F8766D", "#80AE6B", "#4E5E7B",  "#F1CFB0", "#BFDAB6", "#9EC5CC", "#96ABDC"][::-1]

g = sns.boxplot(data=data, x='methods', y='mae', hue="methods", linewidth=2, showfliers=False,showmeans=True,palette=color, meanprops={
                       "markerfacecolor": "red",
                       "markeredgecolor": "black",
                       "markersize": "6"})
# g.legend(loc="upper right", bbox_to_anchor=(1.05,1.05))
plt.xticks([])

([], [])

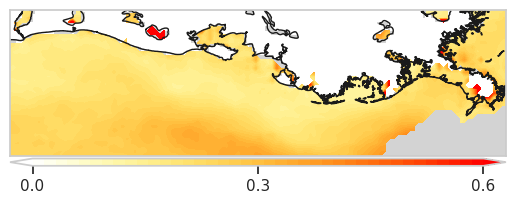

Fig 5b: mean absolute error of PredRNN

from mpl_toolkits import basemap
from sklearn.cluster import KMeans, DBSCAN, SpectralClustering
import cartopy.crs as ccrs
from copy import deepcopy
import h5py
from numpy import meshgrid
import numpy as np
from cmap import Colormap

cm = Colormap('vispy:fire').to_mpl()  # case insensitive
is_sea = np.load("../data/MEXICO/is_sea.npy")
H, W = is_sea.shape
mae_xg_sp = deepcopy(mae_predrnn_wo.numpy())
tmp = np.zeros((H,W))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= mae_xg_sp

lon = np.load("../data/MEXICO/lon.npy")
lati = np.load("../data/MEXICO/lati.npy")


lon1, lon2, lati1, lati2 = lon.min(), lon.max(), lati.min(), lati.max()
map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.6, 40),cmap=cm,extend='both')

map.colorbar(boundaries=np.linspace(0, 0.6, 100), ticks=np.linspace(0, 0.6, 3),location='bottom')

<matplotlib.colorbar.Colorbar at 0x70dc00156040>

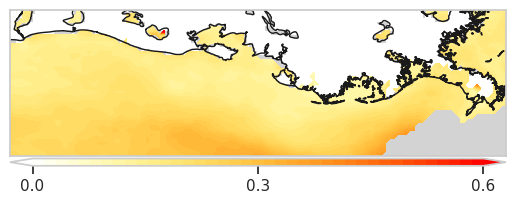

Fig 5b: mean absolute error of STIMP

cm = Colormap('vispy:fire').to_mpl()  # case insensitive
mae_our_sp = deepcopy(mae_our.numpy())
tmp = np.zeros((H,W))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= mae_our_sp

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.6, 40),cmap=cm,extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(0, 0.6, 100), ticks=np.linspace(0, 0.6, 3),location='bottom')

<matplotlib.colorbar.Colorbar at 0x70da0dca75b0>

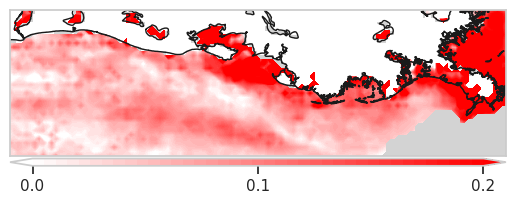

Fig 5b: improvement of STIMP compared to PredRNN

cm = Colormap('chrisluts:I_Red').to_mpl()
improvement =  (mae_predrnn_wo.numpy() - mae_our.numpy())/mae_predrnn_wo.numpy()
tmp = np.zeros((H,W))
tmp[~is_sea.astype(bool)]= np.nan
tmp[is_sea.astype(bool)]= improvement

map = basemap.Basemap(llcrnrlon=lon1, llcrnrlat=lati1,urcrnrlon=lon2, urcrnrlat=lati2, projection='cyl', resolution='f')
# map.fillcontinents(color='white')
map.drawlsmask(land_color='white', ocean_color='lightgray', resolution='f',grid=1.25)
# map.bluemarble()
map.drawcoastlines()
map.contourf(lon, lati, tmp, levels=np.linspace(0, 0.2, 40),cmap=cm,extend='both')

# map.contourf(x, y, tmp2, levels=np.linspace(-1.5, 1.5, 40),cmap="Greys")
map.colorbar(boundaries=np.linspace(0, 0.2, 100), ticks=np.linspace(0, 0.2, 3),location="bottom")

<matplotlib.colorbar.Colorbar at 0x70da0d219820>
